API Rate Limit and Throttling with Lambda Authorizer > Create Authorizer

Create Authorizer

Contents:

An Authorizer in API Gateway is a mechanism that allows you to control authentication and request authorization (based on token or policy) before the request is forwarded to the backend.

Create Lambda Function Authorizer

Go to the Lambda service
Click Create function

Lambda Authorizer

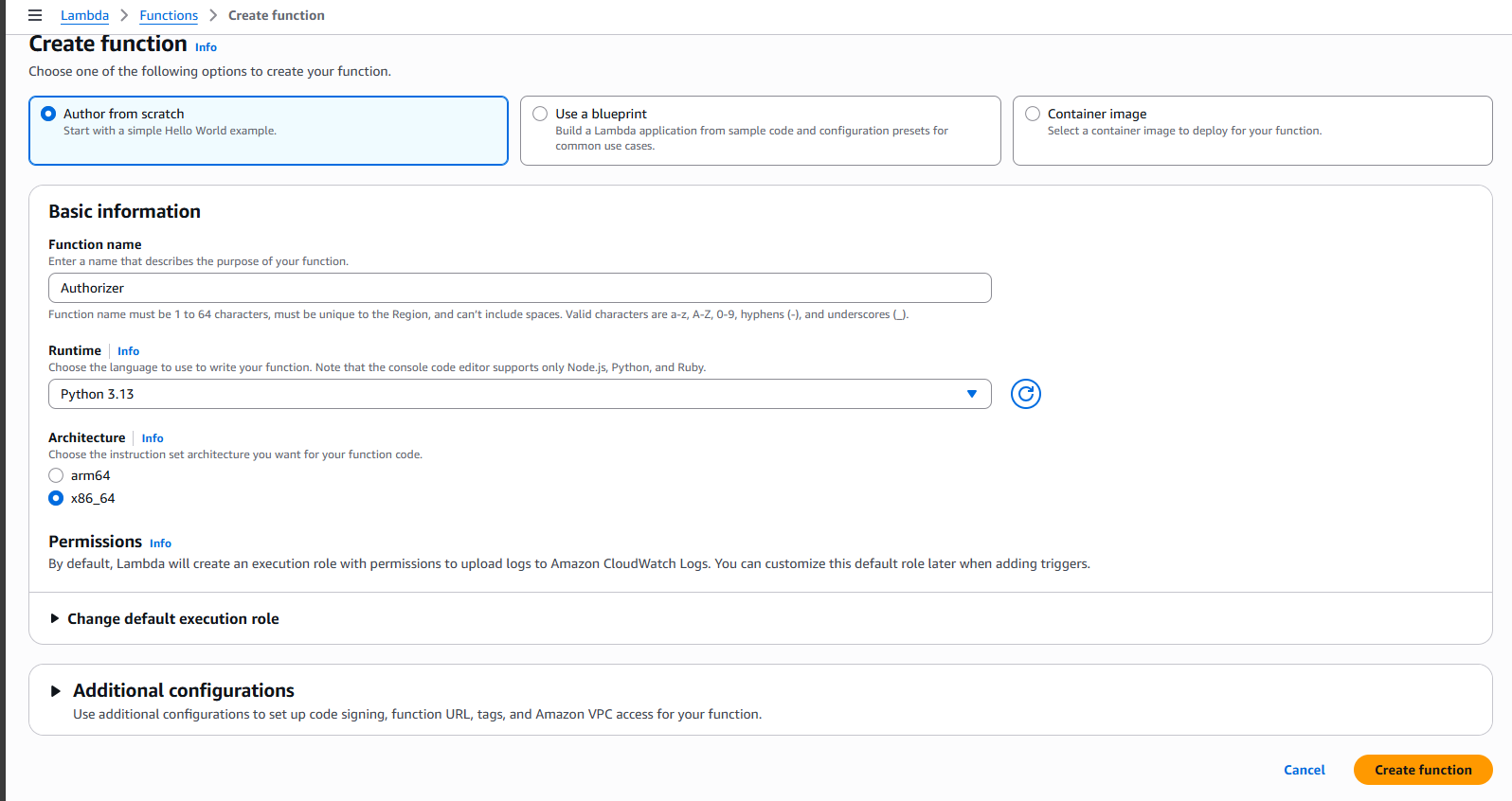

In the Create function interface:
- Select Author from scratch
- In Function name, enter the function name (Authorizer)
- Select Runtime Python 3.13
- Select Architecture x86_64
- Click Create function

Lambda Authorizer

In the code editor of the Lambda Authorizer:
- This Authorizer will validate the authorizationToken (sent by the client). Based on the token, it decides whether to Allow or Deny API calls. If allowed, it only grants access to specific resources (endpoints).
- Update the code as follows:

def generate_policy(principal_id, effect, resources, context=None):
    if not isinstance(resources, list):
        resources = [resources]

    policy = {
        "principalId": principal_id,
        "policyDocument": {
            "Version": "2012-10-17",
            "Statement": [{
                "Action": "execute-api:Invoke",
                "Effect": effect,
                "Resource": resources
            }]
        }
    }
    if context:
        policy["context"] = context
    return policy

user_type_config = {
    "normalUser": {
        "resource": "Users"
    },
    "premiumUser": {
        "resource": "PremiumUsers"
    },
    "devs": {
        "resource": "Devs"
    }
}

def build_allowed_resource(method_arn, resource_pattern):
    arn_parts = method_arn.split(":")
    region = arn_parts[3]
    account_id = arn_parts[4]
    api_gateway_arn_parts = arn_parts[5].split("/")
    api_id = api_gateway_arn_parts[0]
    stage = api_gateway_arn_parts[1]
    http_method = api_gateway_arn_parts[2]

    resource_base = f"arn:aws:execute-api:{region}:{account_id}:{api_id}/{stage}/{http_method}"
    clean_resource_pattern = resource_pattern.rstrip("/*")
    return [f"{resource_base}/{clean_resource_pattern}"]

def lambda_handler(event, context):
    token = event.get("authorizationToken")
    method_arn = event["methodArn"]

    if token not in user_type_config:
        return generate_policy(
            principal_id="unknown",
            effect="Deny",
            resources=method_arn,
            context={
                "token": token or "None",
                "methodArn": method_arn
            }
        )

    config = user_type_config[token]
    allowed_resources = build_allowed_resource(method_arn, config["resource"])

    return generate_policy(
        principal_id=token,
        effect="Allow",
        resources=allowed_resources,
        context={
            "token": token,
            "methodArn": method_arn
        }
    )

generate_policy function

Creates the policy document required by API Gateway.
principalId: user identifier (can be the token or string "unknown").
effect: "Allow" or "Deny".
resources: list of ARNs (API endpoints) the user can access.
context: metadata returned to API Gateway (can be forwarded to the Lambda backend).

def generate_policy(principal_id, effect, resources, context=None):
    if not isinstance(resources, list):
        resources = [resources]

    policy = {
        "principalId": principal_id,
        "policyDocument": {
            "Version": "2012-10-17",
            "Statement": [{
                "Action": "execute-api:Invoke",
                "Effect": effect,
                "Resource": resources
            }]
        }
    }
    if context:
        policy["context"] = context
    return policy

Configure user_type_config

Maps tokens → allowed resource paths.
Example: if the client sends token "normalUser" → can only call /Users.

user_type_config = {
    "normalUser": {
        "resource": "Users"
    },
    "premiumUser": {
        "resource": "PremiumUsers"
    },
    "devs": {
        "resource": "Devs"
    }
}

build_allowed_resource function

Parses the methodArn (sent by API Gateway).
Extracts: region, account_id, api_id, stage, http_method.
Rebuilds the ARN for the resource that the user is allowed to access.
Returns the list of valid ARNs.

def build_allowed_resource(method_arn, resource_pattern):
    arn_parts = method_arn.split(":")
    region = arn_parts[3]
    account_id = arn_parts[4]
    api_gateway_arn_parts = arn_parts[5].split("/")
    api_id = api_gateway_arn_parts[0]
    stage = api_gateway_arn_parts[1]
    http_method = api_gateway_arn_parts[2]

    resource_base = f"arn:aws:execute-api:{region}:{account_id}:{api_id}/{stage}/{http_method}"
    clean_resource_pattern = resource_pattern.rstrip("/*")
    return [f"{resource_base}/{clean_resource_pattern}"]

lambda_handler function

Retrieves the token from the event (sent in the Authorization header).
If the token does not exist in user_type_config → return Deny policy.
If the token is valid → get resource config from user_type_config → build allowed resource ARN → return Allow policy, granting access only to the correct resource.

def lambda_handler(event, context):
    token = event.get("authorizationToken")
    method_arn = event["methodArn"]

    if token not in user_type_config:
        return generate_policy(
            principal_id="unknown",
            effect="Deny",
            resources=method_arn,
            context={
                "token": token or "None",
                "methodArn": method_arn
            }
        )

    config = user_type_config[token]
    allowed_resources = build_allowed_resource(method_arn, config["resource"])

    return generate_policy(
        principal_id=token,
        effect="Allow",
        resources=allowed_resources,
        context={
            "token": token,
            "methodArn": method_arn
        }
    )

Integrate with API

Open the API you created in API Gateway
Click Authorizers in the left-hand menu
Click Create authorizer

Lambda Authorizer

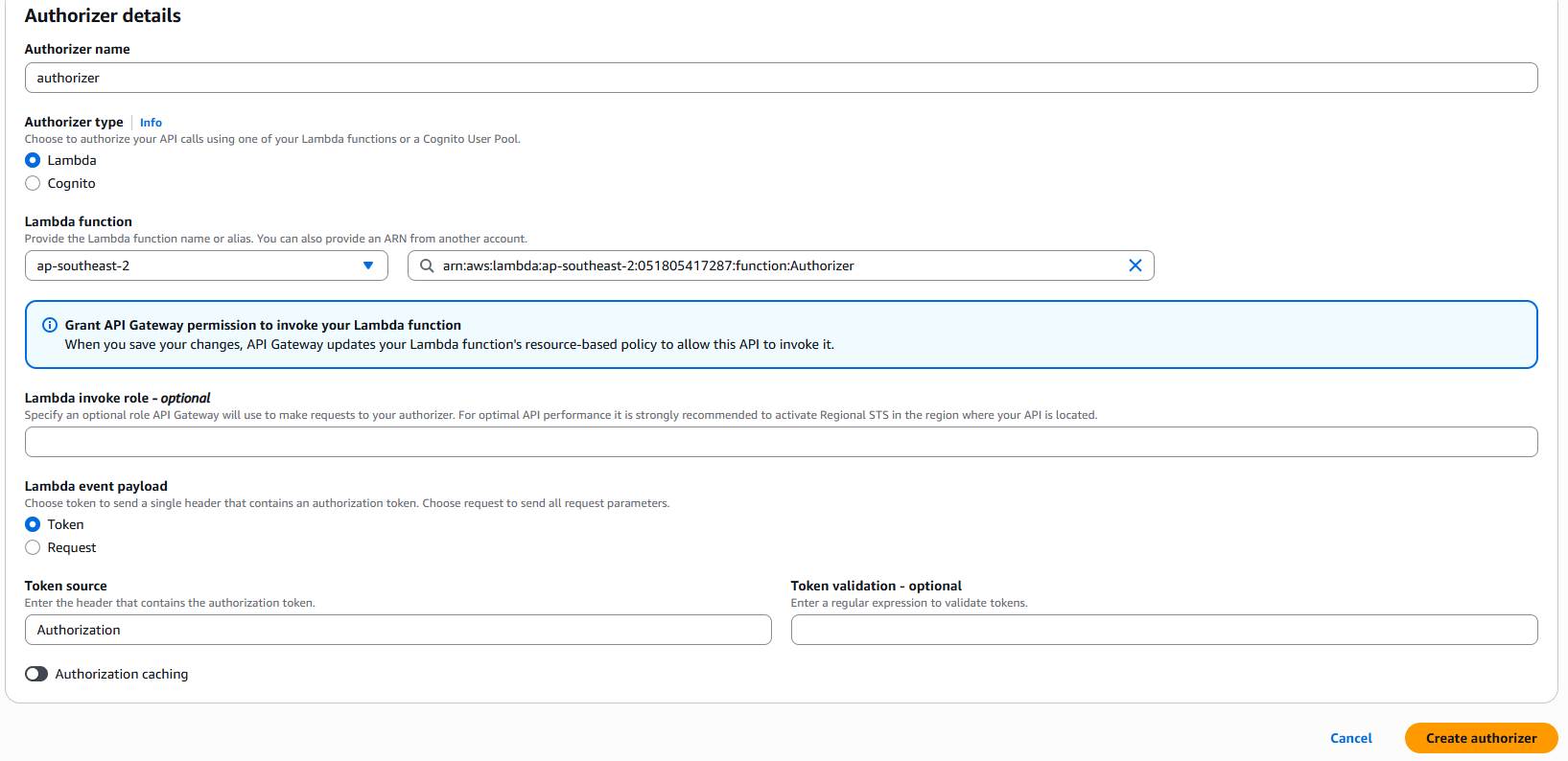

In the Create authorizer interface:
- Enter the Authorizer name
- Select Authorizer type as Lambda
- Choose the Lambda function you just created
- Select Lambda event payload as Token
- Set Token source to Authorization
- Disable cache to avoid unnecessary costs
- Click Create authorizer

Token source should be set to Authorization, since it is a default header in CORS.

Lambda Authorizer

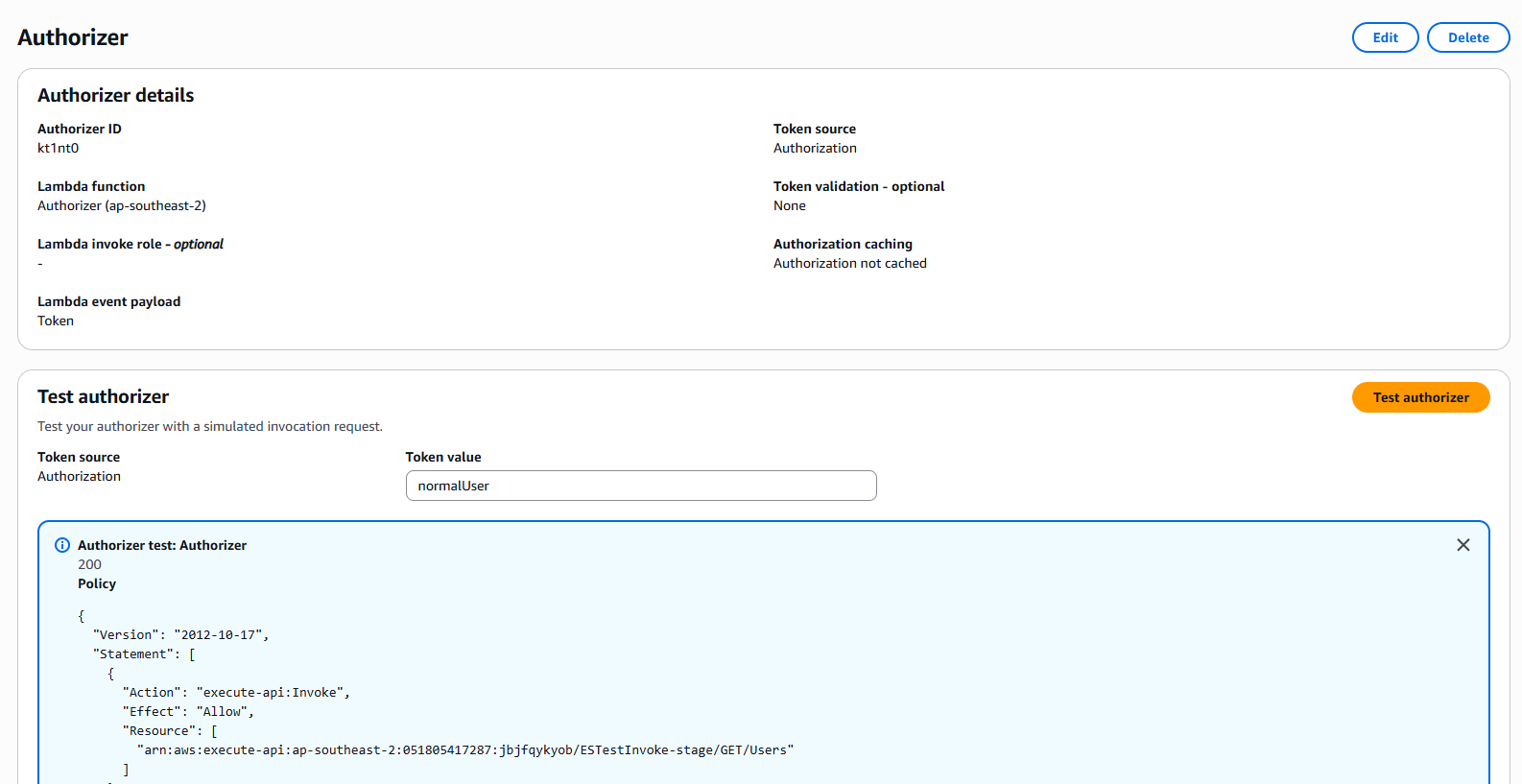

You can test the Authorizer directly in its console interface.
Enter a Token value in Token Value and click Test authorizer

Lambda Authorizer

Set Authorizer for Methods

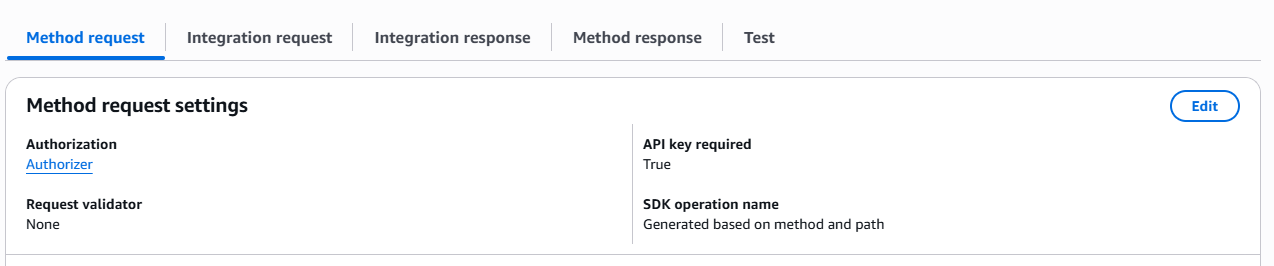

In the Method request tab of each Method in the API, click Edit

Lambda Authorizer

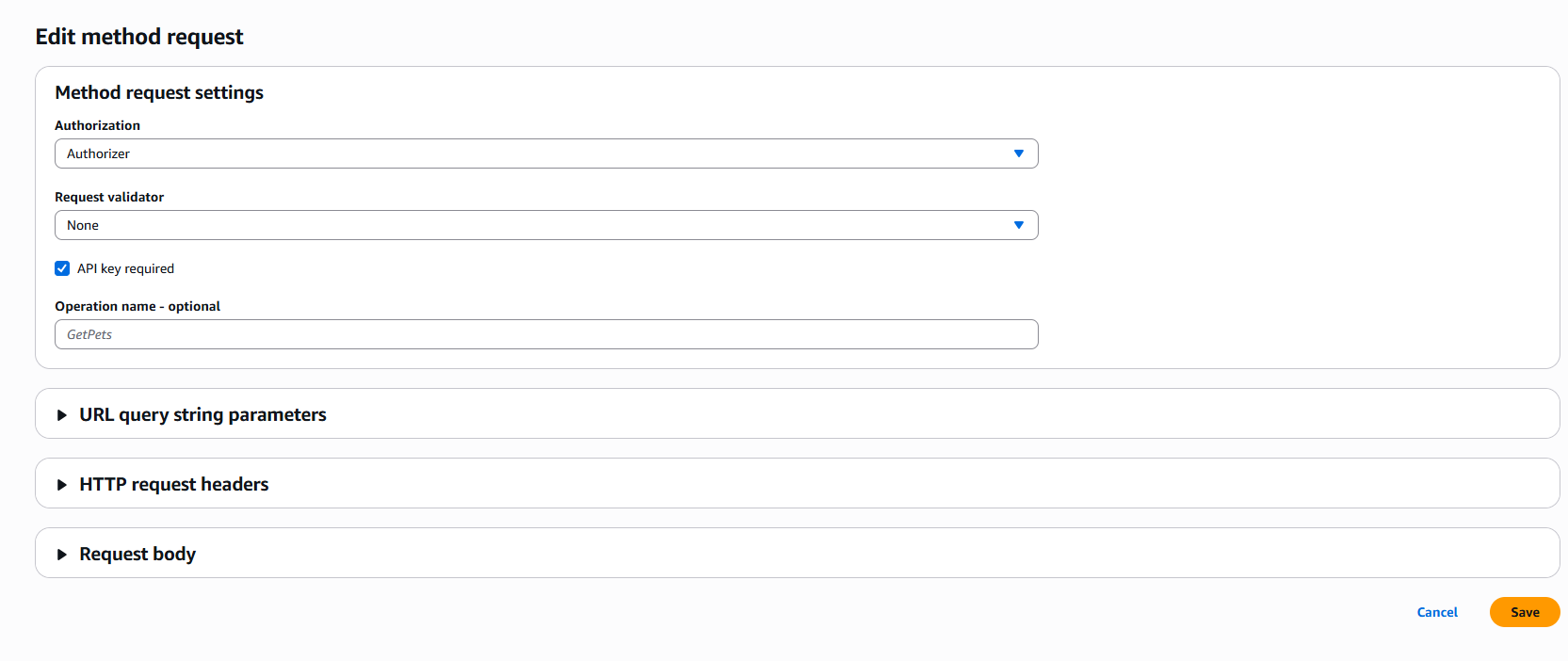

Select Authorization as the Authorizer you just created
Click Save

Lambda Authorizer

Repeat the same steps for the other Methods.
